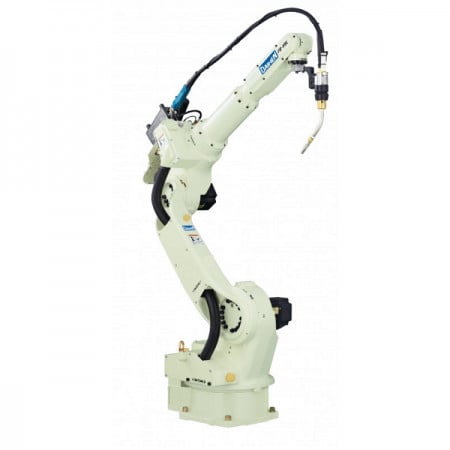

FD-V6L Welding Robot, 6 Axes, Vertical Joint, for MIG/MAG/TIG Applications
Request a Personalized Offer
Do you need a solution tailored to your needs?
-
Delivery and Installation Included
Transport is carried out safely, and our team takes care of the installation and commissioning of the equipment directly at the customer's location.
-
Full Warranty and Dedicated Support
All equipment comes with a 2-year warranty and prompt service, both during and after the warranty period.
-
Support Before and After Purchase
We guide you step by step in choosing the right equipment for your business needs.
-
Financing Tailored to Your Needs
We work with several banks and financial institutions to offer you flexible payment solutions.
-
Long-Term Partnership
We rely on over 10 years of experience in the industry and a dedicated team ready to provide constant support, optimization ideas, and innovative solutions for the growth of your business.
Payment Methods:
Description
The FD-V6L welding robot is a highly flexible manipulator for all welding applications: MIG / MAG and TIG. The long-reach AII-V6L robot (arm extended by 500 mm) meets all requirements for working with larger parts.
| Model | FD-V6L |
|---|---|
| Structure | Vertical Joint |
| Number of Axes | 6 |
| P Point (Working Area) | R=2,006 mm |
| Maximum Load Capacity | 6 kg |
| Repeatability | +/- 0.08 mm |
| Drive System | AC Servo Motors |
| Weight | 280 kg |
| Working Area | Arm | 1. Rotation Axis | +/- 170 ° |
| 2. Tilt Axis | -155 ° ~ +100 ° | ||
| 3. Rotation Axis | -170 ° ~ +260 ° | ||
| Wrist | 4. Rotation Axis | +/- 180 | |
| 5. Tilt Axis | -50 ° ~ +230 ° | ||
| 6. Rotation Axis | +/- 360 ° | ||
| Maximum Speed | Arm | 1. Rotation Axis | 195 °/s |
| 2. Tilt Axis | 200 °/s | ||
| 3. Rotation Axis | 200 °/s | ||
| Wrist | 4. Rotation Axis | 420 °/s | |
| 5. Tilt Axis | 420 °/s | ||
| 6. Rotation Axis | 620 °/s | ||
| Maximum Load Capacity – Permissible Torque | 1. Rotation Axis | 11.8 Nm | |
| 2. Tilt Axis | 9.8 Nm | ||
| 3. Rotation Axis | 5.9 Nm | ||
| 4. Rotation Axis | 0.30 kg/m² | ||
| 5. Tilt Axis | 0.25 kg/m² | ||
| 6. Rotation Axis | 0.06 kg/m² | ||
| Ambient Temperature / Relative Humidity | 0 ~ 45 ° / 20 ~ 80% | ||
| Maximum Load on Upper Arm | 20 kg | ||
| Mounting Position | Standing, Wall Mounted | ||
