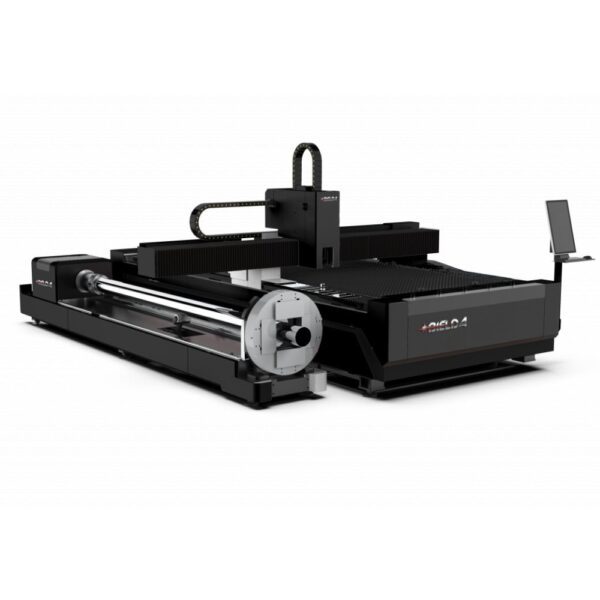

Laser cutting machine for sheet and tube Bielda BBT Series, Raycus/IPG laser source, autofocus, plate + rectangular tube frame
Request a Personalized Offer
Do you need a solution tailored to your needs?
-
Delivery and Installation Included
Transport is carried out safely, and our team takes care of the installation and commissioning of the equipment directly at the customer's location.
-
Full Warranty and Dedicated Support
All equipment comes with a 2-year warranty and prompt service, both during and after the warranty period.
-
Support Before and After Purchase
We guide you step by step in choosing the right equipment for your business needs.
-
Financing Tailored to Your Needs
We work with several banks and financial institutions to offer you flexible payment solutions.
-
Long-Term Partnership
We rely on over 10 years of experience in the industry and a dedicated team ready to provide constant support, optimization ideas, and innovative solutions for the growth of your business.
Payment Methods:
Description
| TECHNICAL PARAMETERS | |
|---|---|
| Working area | 1500*3000mm / 4000*1500mm / 4000*2000mm / 6000*2000mm |
| X/Y axis positioning accuracy | ±0.03mm |
| X/Y axis repeatability | ±0.02mm |
| Maximum running speed | 140m/min |
| Maximum acceleration | 1.5G |
| Maximum load on working table | 800 kg |
| Table change time | 25s |
| Electrical supply | Three-phase, 380V, 50Hz/60Hz |
Bielda is an international supplier offering professional solutions for metal cutting and processing. Special attention is given to automation as well as material and data flow in the cutting and bending process. The product portfolio includes fiber laser cutting machines, water jet cutting machines, plasma cutting machines, laser welding machines, as well as automation and production programming solutions.
We are a partner that provides trust through innovations and software developed for material cutting applications across all branches of the processing industry. We earn customers’ trust through design, installation, and service support.
| MAIN CONFIGURATION | |
|---|---|
| Laser source | Raycus/IPG |
| Frame | Robust plate and rectangular tube frame |
| Crossbeam | Aluminum, light and precise |
| Transmission system | Precision unit with rack and pinion mechanism |
| Machine type | Open system, interchangeable table and tube cutting |
| Speed reducer | Germany EREFAT |
| Motor and driver | Japan FUJI servo motor |
| Guide rails | Taiwan HIWIN |
| Rack and pinion | Taiwan T-WIN |
| Laser head | Ray Tools with autofocus |
| Gas valve | Taiwan Airtac |
| Water cooler | China HANLI |
| Electrical components | Schneider |
| Electric proportional valve | Japan SMC |
| Dust and fume removal system | Exhaust with centrifugal fan |
| System | Cypcut |
| Spare parts | 10 nozzles; 6 protective lenses |
| Tube loading length | 3m / 6m |
| Tube diameter | 20-160mm / 20-220mm |
